YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen

Brand Name : YZY

Model Number : YQX6-7A

Certification : CE/ROHS

Place of Origin : China

MOQ : 100

Price : $26.5-30.25/pieces

Payment Terms : T/T

Supply Ability : 50K/Month

Delivery Time : 30-45days

Packaging Details : 164.90 *102.00*14.25mm/510g

Type : 7 Inch HDMI LCD Display

Display Size : 7 inch

Supplier Type : Factory

Video Input : HDMI

Contact Now

YQX6-7C 1024*600 7 Inch IPS HDMI LCD Display with 5-Point Capacitive Touch Screen
Premium Display Features
  • 7-inch IPS display with wide viewing angles and true-to-life color reproduction
  • High resolution 1024*600 display for crisp, detailed visuals
  • Tempered glass touch panel with 6H hardness rating for durability
  • 5-point capacitive touch screen for responsive multi-touch operation
  • HDMI input interface for high-definition video connectivity
  • 3.5mm audio output jack for external sound devices
  • Dedicated backlight adjustment button for brightness control
  • Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black
  • Plug-and-play support for Raspbian, Ubuntu, Kali, and Windows 10 IoT
  • Works as a computer monitor with Windows 7/8/10 (touch support)
  • Gaming console compatible with PS4, XBOX360, and Nintendo Switch
  • CE and ROHS certified for quality assurance
Technical Specifications
Size 7.0 inch Screen Type IPS Screen
SKU MPI7006 Resolution 1024*600 dots
Backlight Adjustment Independent button Touch 5 point capacitive
Touch IC GT911 Power MicroUSB (5V/2A)
Dimensions 164.9 * 102 * 14.25 mm Video Input HDMI
Weight 510 g (including packaging) Audio Output 3.5mm Audio Interface
Interface Diagram
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
Installation Guide
Raspberry Pi Installation
1.
Install 4 copper posts YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
2.

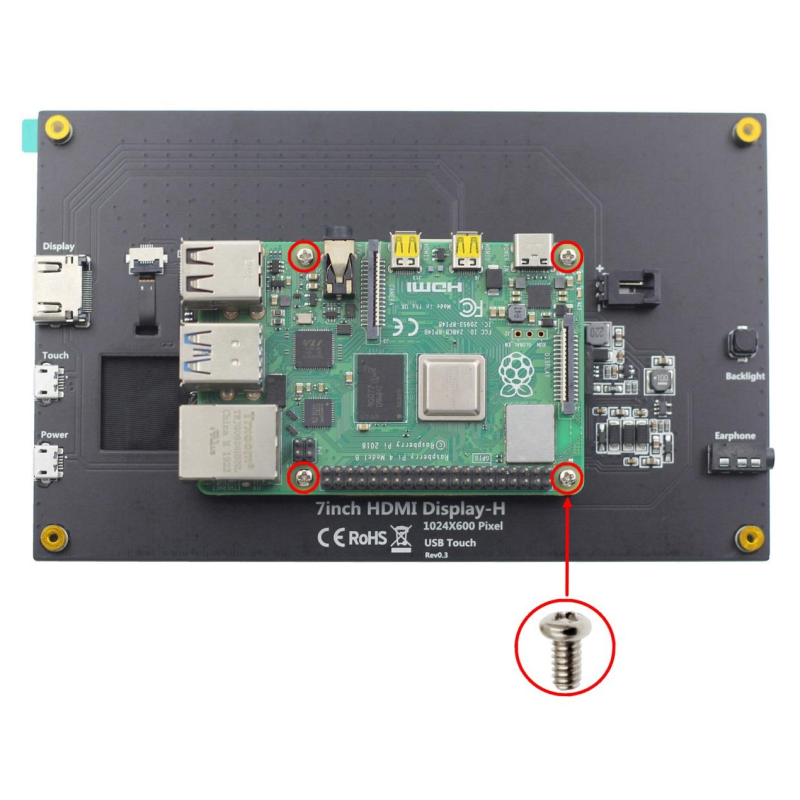

Place Raspberry Pi and install 4 screws (M2.5) YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
Stand Installation
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
Connection Guides

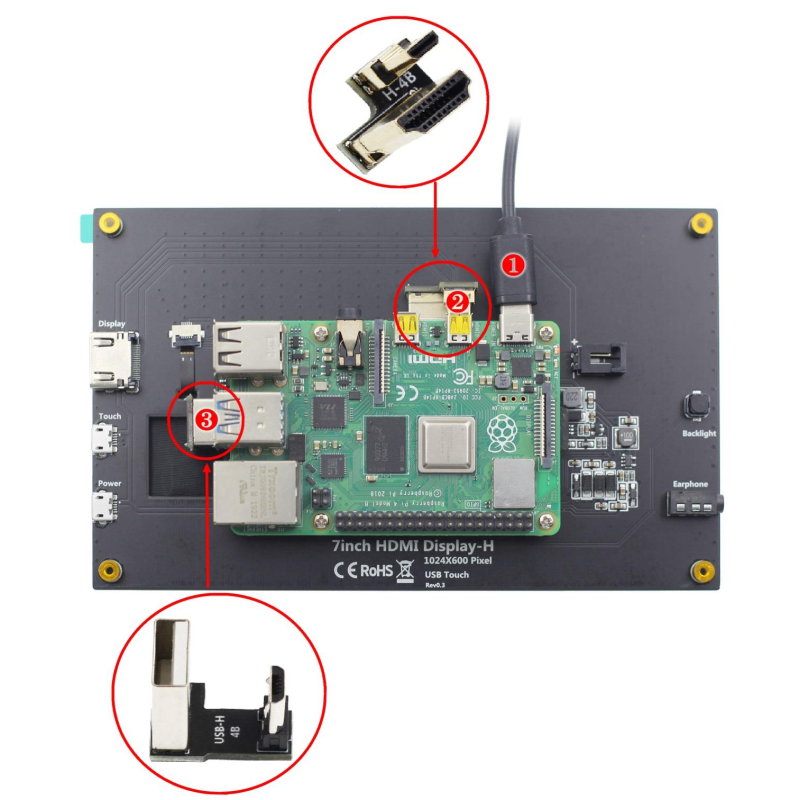

Raspberry Pi 4 Connection
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
Raspberry Pi 3 Connection
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
Important Note: Always connect cables before powering the Raspberry Pi. Use 2.5A power supply for Raspberry Pi 3B+, 3B, 2B, B+, A models. Use full 3A power supply for Raspberry Pi 4B.
PC/Laptop Connection
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
System Setup Instructions
1. Download Official Images
  • Raspbian: Download (Username: pi, Password: raspberry)
  • Ubuntu Mate: Download (Set credentials after startup)
  • Kali Linux: Download (Username: kali, Password: kali)
  • Retropie: Download (Username: pi, Password: raspberry)
2. Burn Image to SD Card
1.
Download and install required tools:
2.
Format SD card using SD Card Formatter YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
3.

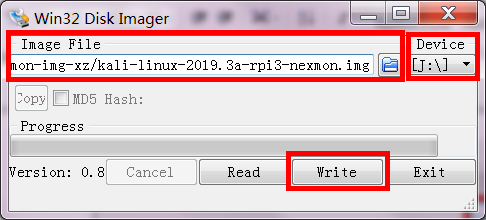

Burn image using Win32 Disk Imager YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
3. Modify Config.txt File
Add the following to the end of config.txt file:
hdmi_force_edid_audio=1 max_usb_current=1 hdmi_force_hotplug=1 config_hdmi_boost=7 hdmi_group=2 hdmi_mode=87 hdmi_drive=2 display_rotate=0 hdmi_cvt 1024 600 60 6 0 0 0
4. Insert SD Card
YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen

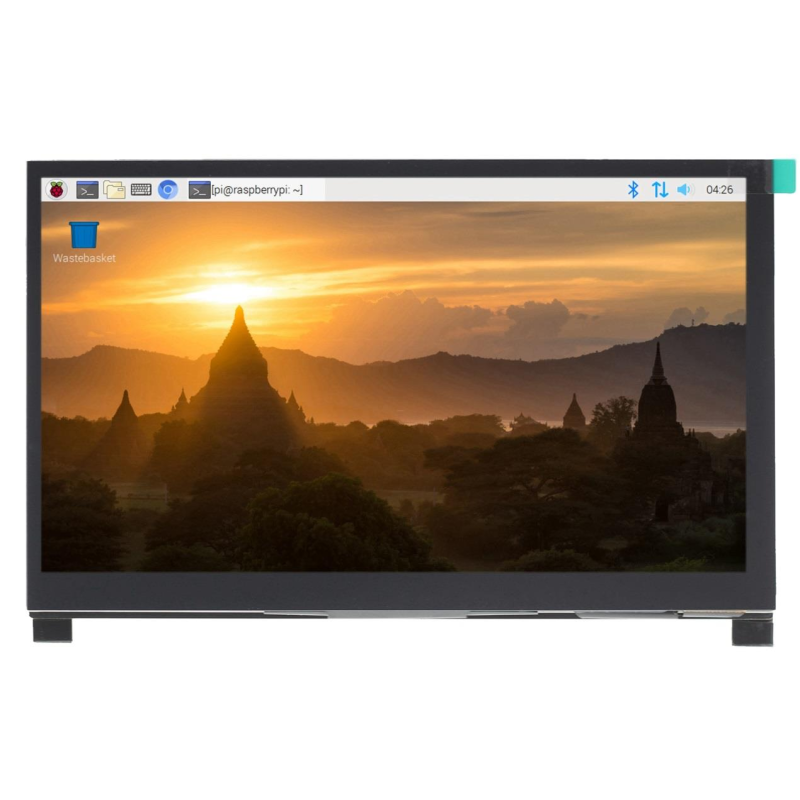

5. System Operation
After completing all connections, power on the Raspberry Pi to see display output with full touch functionality. YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen
