COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Range for Industrial Display

  • 1
  • 2
  • 3

Brand Name : YZY

Model Number : YMG12864FG-X06

Certification : CE, ROHS

Place of Origin : Guangdong, China

MOQ : 10 pieces

Price : $2~.2.99/pieces

Payment Terms : T/T

Supply Ability : 10000 pieces

Delivery Time : 14-60 days

Contact Now

COG12864-16 128x64 Dots LCD Module FSTN Transflective Industrial Display Screen
This industrial grade COG12864-16 128x64 dot matrix LCD module adopts FSTN positive transflective structure and COG packaging technology, driven by ST7565R driver IC. It supports 3.0V working voltage, white LED backlight, 6 o'clock viewing direction and wide temperature operation, with low power consumption, high stability and RoHS compliance. Widely used in industrial control, measuring instruments, smart equipment, automotive electronics and embedded display systems with high reliability requirements.
Product Specifications
Display TypeFSTN Positive Transflective Monochrome LCD
Resolution128 x 64 Dots
Module ModelCOG12864-16
Driver ICST7565R
Drive Mode1/64 Duty, 1/9 Bias
Operating VoltageVDD=3.0V, VLCD=9.3V
Viewing Direction6 O'Clock
BacklightWhite LED, 2.9-3.3V, 90mA
Operating Temp-20℃ ~ +70℃
Storage Temp-30℃ ~ +80℃
Connection TypeCOG (Chip On Glass)
Dimension76.0*48.0*5.0 mm
CertificationRoHS Compliant
ToleranceUnspecified Tolerance ±0.2mm
Product Features
  • 128x64 standard dot matrix, FSTN positive transflective display effect
  • COG ultra-thin structure, small outline, easy for embedded installation
  • ST7565R dedicated driver, stable drive and long service life
  • White LED backlight, uniform brightness, low power consumption
  • Wide temperature range, suitable for harsh industrial environments
  • RoHS compliant, environmentally friendly, meets global export standards
  • 32PIN definition, compatible with mainstream industrial control interfaces
Applications
  • Industrial control equipment and operation panels
  • Electronic measuring instruments and meters
  • Smart home and portable electronic devices
  • Automotive electronics and vehicle-mounted displays
  • Medical auxiliary instruments and communication equipment
  • Embedded system display modules and industrial terminals

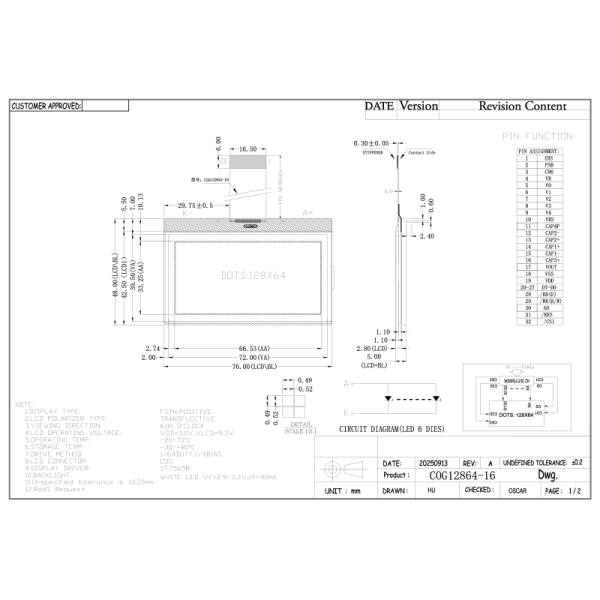

Dimension & Drawing
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Range for Industrial Display

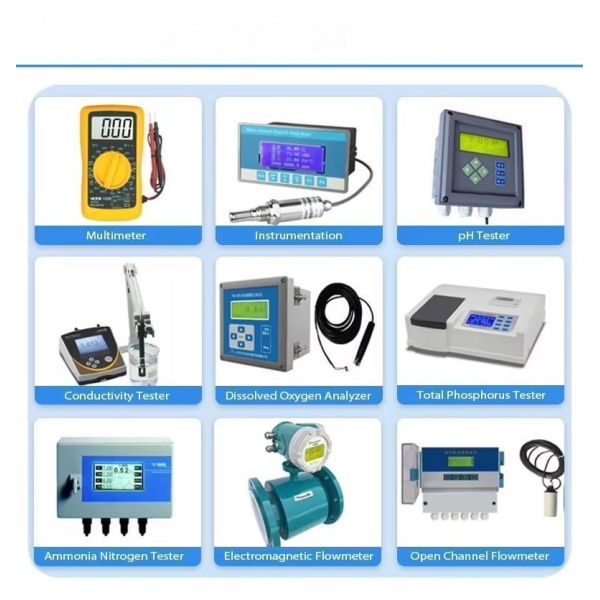

Product Application
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Range for Industrial Display
Shipping & Delivery
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Range for Industrial Display
